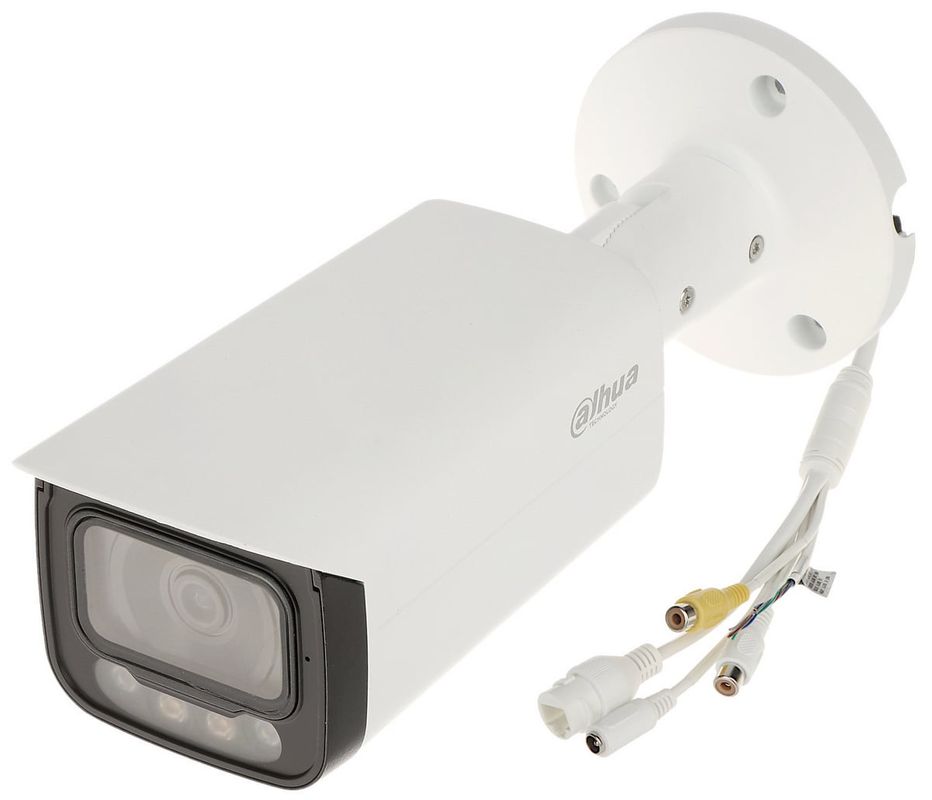

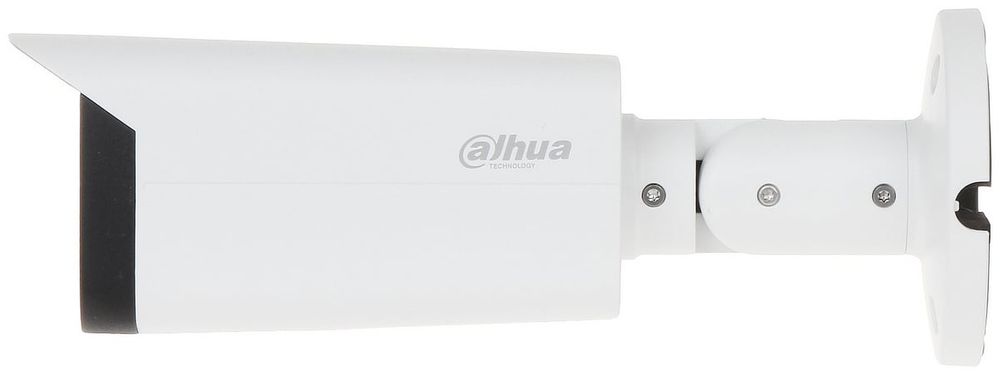

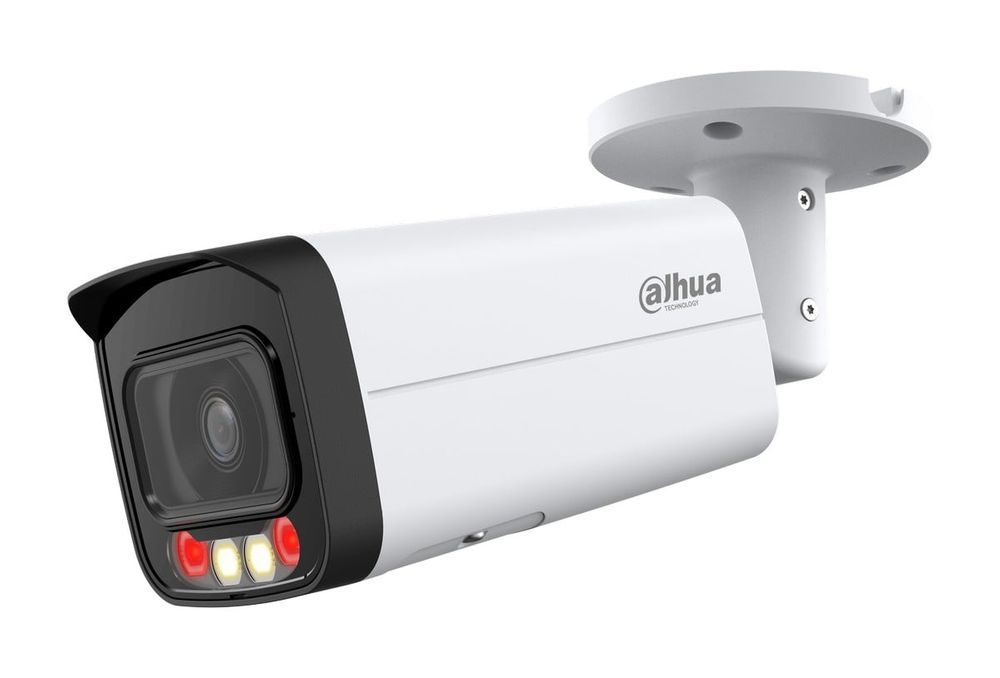

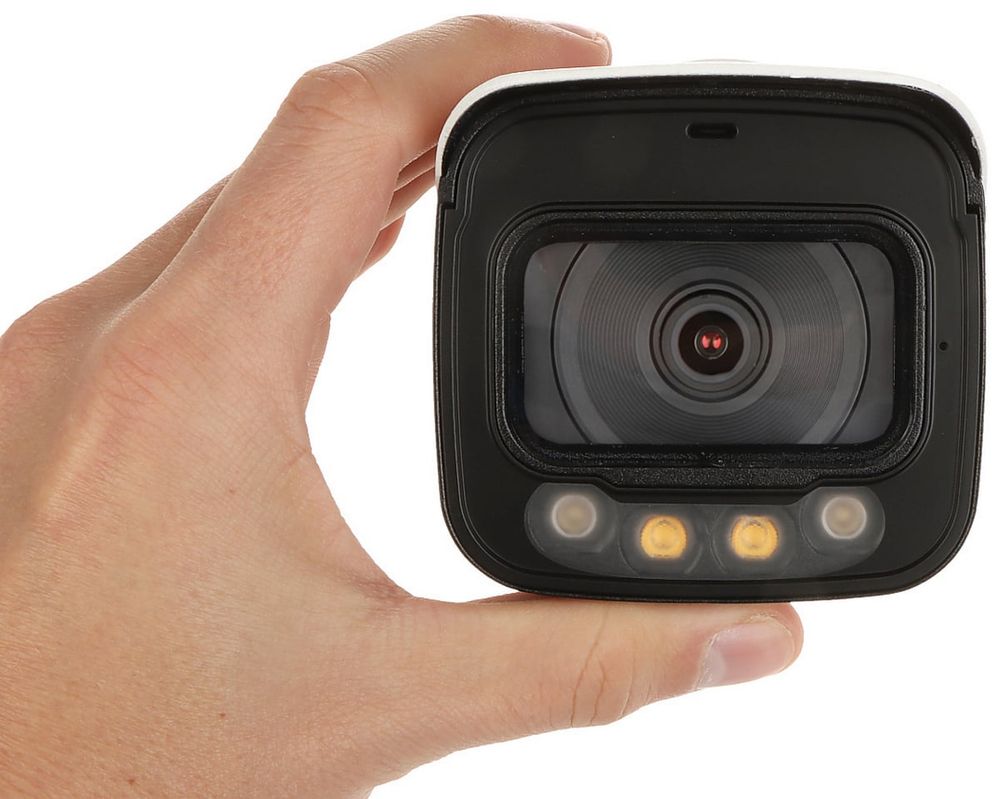

Camera de exterior IP, WizSense, 4MP 2K, 3.6mm, Iluminare duala 50m, Microfon, PoE, MicroSD, IP67 si IK10, Dahua IPC-HFW2449T-AS-IL-0360B
1 / 9Descriere
| Camera | |
|---|---|
| Senzor: | 1/2.9 inci Progressive Scan CMOS |
| Rezolutie video: | 4 Megapixeli (2688 × 1520 pixeli) |
| Distanta iluminator IR: | 60 m |
| Distanta iluminator lumina alba (calda): | 50 m |
| Numar iluminatoare: | 2x LED; 2x Lumina alba (calda) |
| Sensibilitate: | 0.006 lux (color) 0.0006 lux (alb-negru) 0 lux (iluminator pornit) |
| Viteza shutter electronic: | Auto/Manual 1/3 s – 1/100.000 s |
| ROM: | 128 MB |
| RAM: | 128 MB |
| Raport S/N: | 56 dB |
| Lentila | |
| Lentila fixa: | 3.6 mm |
| Diafragma: | F1.6 |
| Unghi de vizualizare: | 84° (orizontala) 42° (verticala) 101° (diagonala) |
| Video/Audio | |
| Compresie video: | H.265; H.264; H.264H; H.264B; MJPEG |
| Cadre/secunda: | Main stream: 2688 × 1520 (1–20 fps) / 2560 × 1440 (1–25/30 fps) Sub stream: 704 × 576 (1–25 fps) / 704 × 480 (1–30 fps) |
| Bit rate video: | H.264: 32 kbps – 6144 kbps H.265: 12 kbps – 6144 kbps |
| Compresie audio: | G.711a; G.711Mu; G.726; PCM |
| Retea | |
| Ethernet: | 1x RJ-45 (10/100 Base-T) |
| Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperabilitate: | ONVIF (Profil S/Profil G/Profil T); CGI |
| Utilizatori: | 6 (latime de banda totala: 36 Mb) |
| Browser compatibil: | IE, Chrome, Firefox |
| Smartphone compatibil: | iOS, Android |

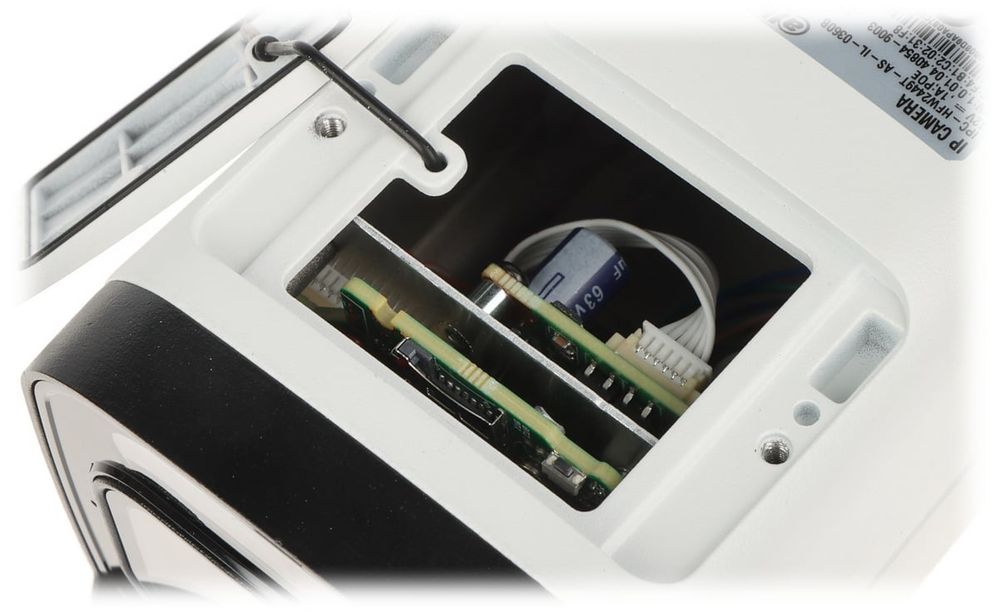

| Stocare: | FTP; SFTP; card microSD de pana la 256 GB (nu este inclus in pachet) |

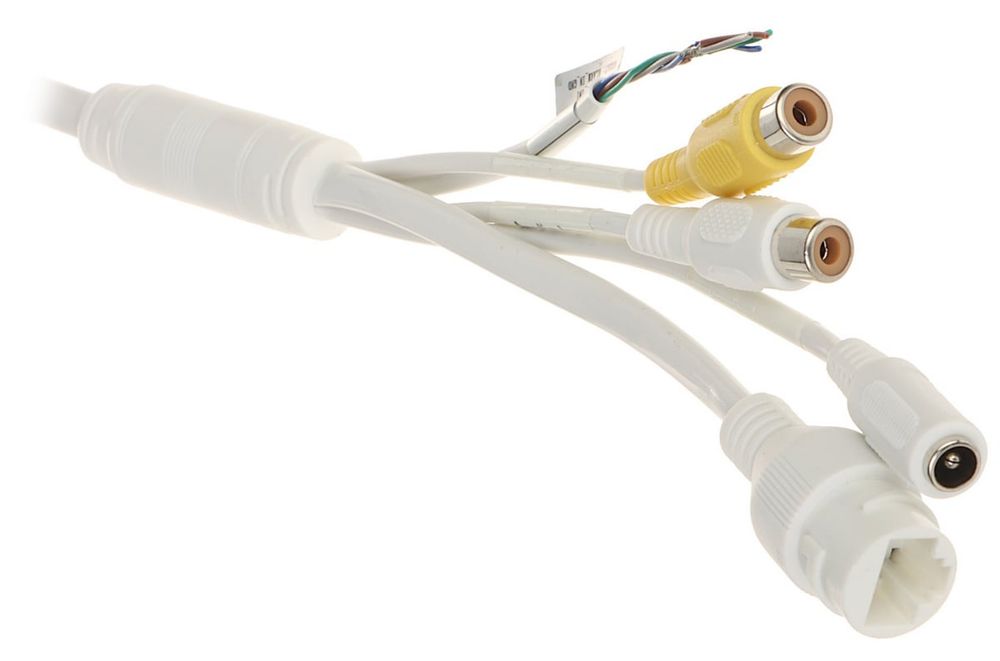

| Interfata | |
| Intrare audio: | 1x (RCA) |
| Iesire audio: | 1x (RCA) |

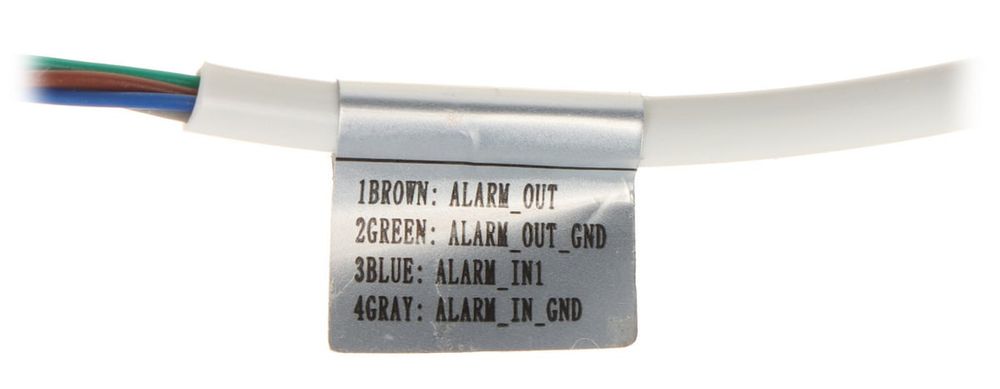

| Intrare alarma: | 3-5 V DC (5 mA) |
| Iesire alarma: | 12 V DC (300 mA) |
| Caracteristici generale | |
| Functii smart: | BLC, HLC, WDR (120 dB), 3D NR, ICR, ROI (4 zone), zone private (4 zone), balans alb, detectia miscarii, IVS (protectie perimetrala) |
| Grad de protectie: | IP67 |
| Material: | Metal |
| Alimentare: | 12 V DC/PoE (802.3af) |
| Consum: | 2 W / 2.6 W (PoE) |
| Consum maxim: | 6.1 W / 7.2 W (PoE) |
| Temperatura de functionare: | -40°C pana la +60°C |

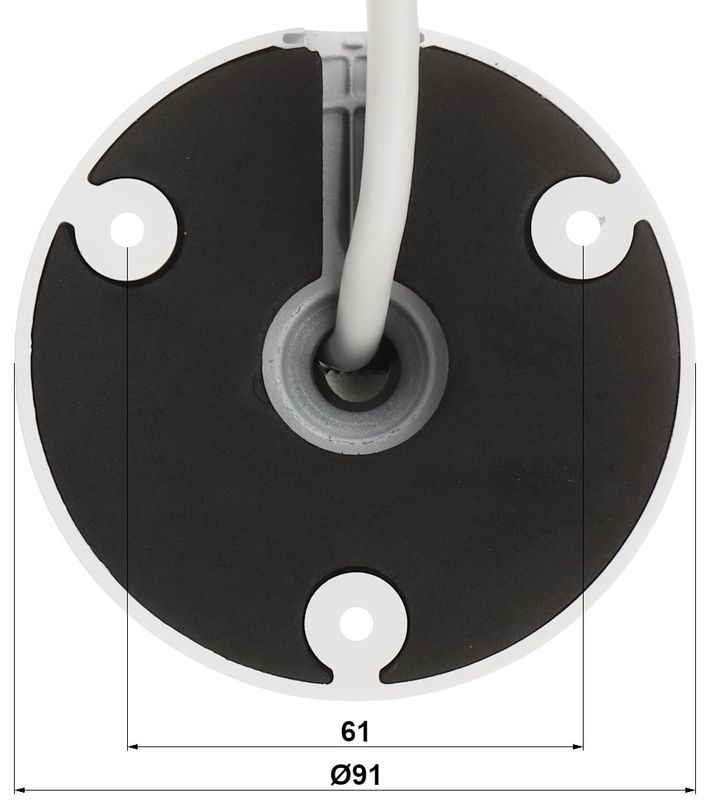

| Dimensiuni: | 238.5 × 90.7 × 90.7 mm |
| Greutate: | 720 g |
